Construction Site, Continuous Operation, Solar Charging, Swappable Cells
◆ Featuring a double cell slot design that allows you to swap cells at the work site
◆ Can be charged via solar panel
◆ It uses highly safe lithium iron phosphate cells
◆ High discharge rate
◆ Two devices can be parallel connected to achieve a maximum power of 12000W
Model :
CPS-3000Ingress / Impact Protection :
IP65 / IK09Working Temperature :
-20℃ ~ 45℃Nominal Energy :
3072WhMaximum Output Power :
3600W / 6000W(Option)Weight :

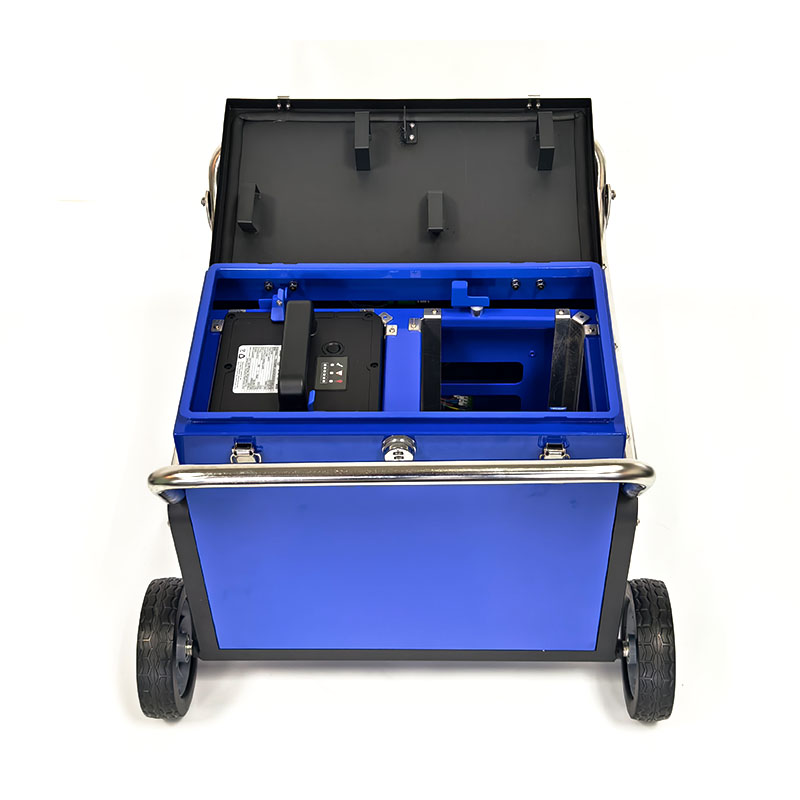

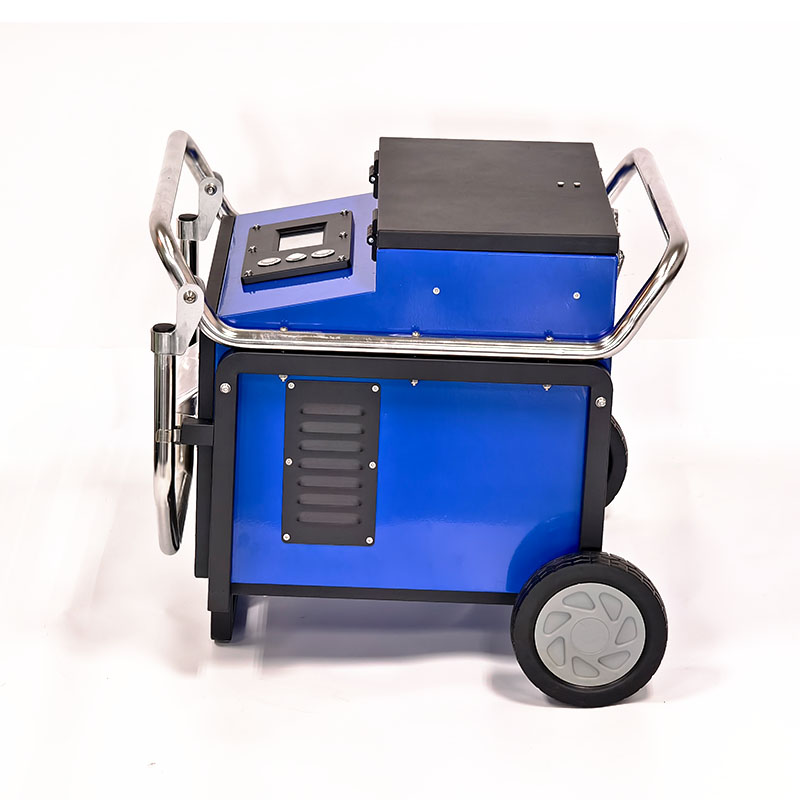

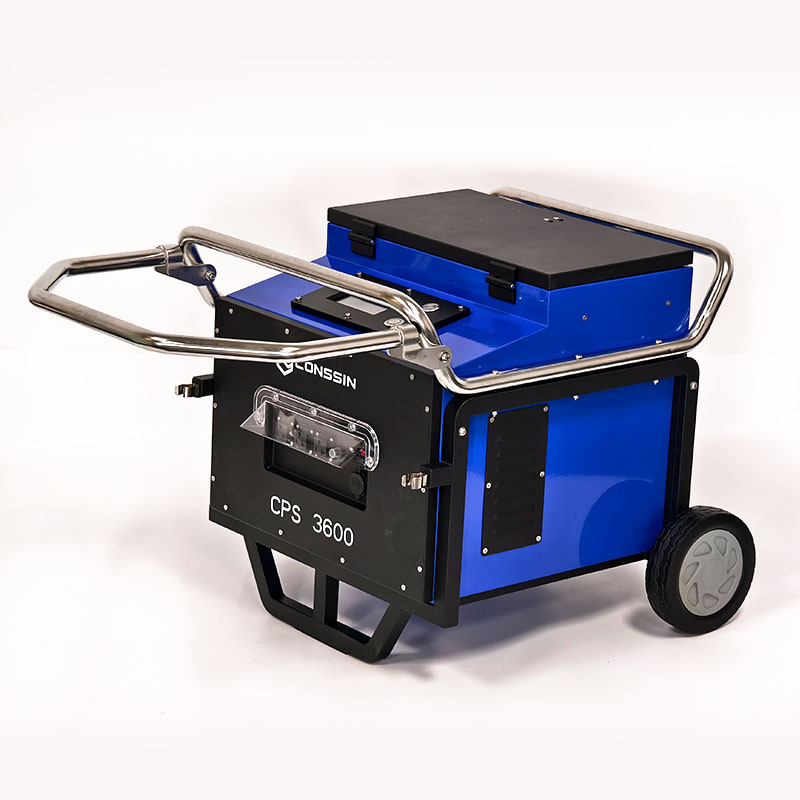

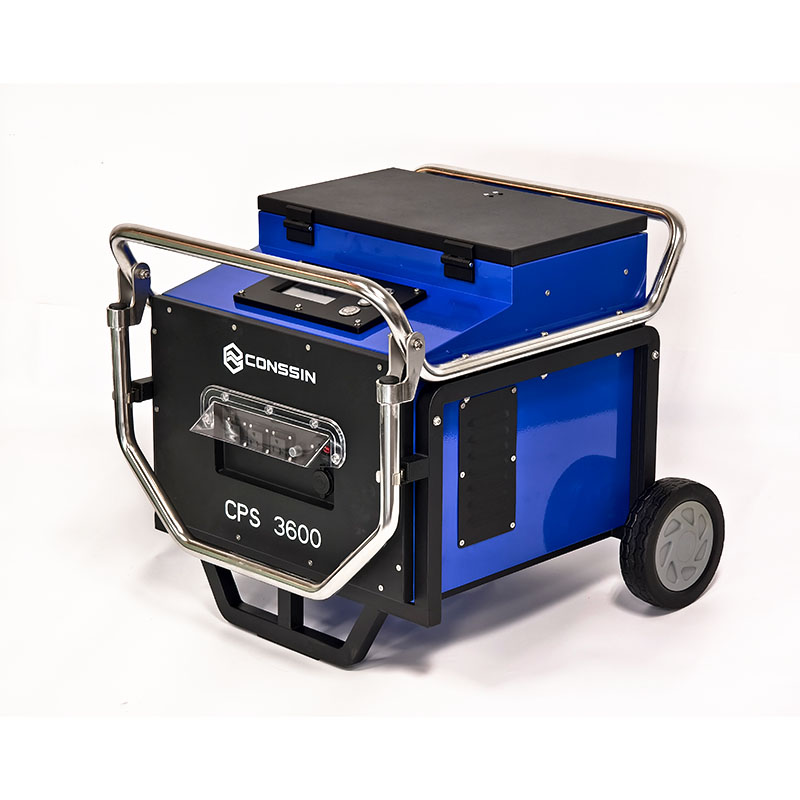

65kgThe key feature of CPS-3600 power station is that it contains two swappable cells which can operate simultaneously or solo, allowing you to partially reduce its weight when the load is small, and release its full potential when the work requires prolonged energy supply.
Rated capacity: 3072Wh
Power: 3600W
Overload power: 3600W
AC outlet: 125V grounded 2P x 2
DC outlet: USB-A x 1, USB-C x 1
AC charging time: 3 hours
Solar charging: up to 800W
Expansion : Use parallel cord to enable parallel operation with two units.
Cycle life: Capacity ≥80% after 2000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Fire extinguishing device: Aerosol type (oxygen cutoff)
UPS (Uninterruptible Power Supply): Operation switching time ≤10ms (milliseconds)
Application scenarios
製品規格
| Model | CPS-3600 |
| Rated capacity | 3072 Wh |
| Rated power | 3600 W |
| Charging time | ≈3 hours (under the condition of 25℃ ambient temperature) |
| Weight | ≈65kg |
| Dimension | L614 x W642 x H536 mm |
| Battery type | Lithium iron phosphate ion(LFP) |
| IP rating | IP54 |
| IK rating | IK09 |
| Rated voltage | 100VAC ±4% |
| Rated current | 36A |
| Frequency | 50Hz/60Hz |
| Outlet type | 125V・grounded 2P × 3 port |
