Medium Size, Balanced, Durable
◆ Twice the power and effectiveness than its smaller counterpart
◆ Ultra high spec of anti impact and anti vibration
◆ Minor brightness decay from continuous use
◆ UV countermeasure applied
Ingress / Impact Protection :
IP69K / IK10Working Temperature :
-40℃ ~ +50℃Material :
Aluminum alloy & PolycarbonateCRI :
Ra80Lens Type :
Asymmetric Flood / Medium / NarrowLight Power Consumption :

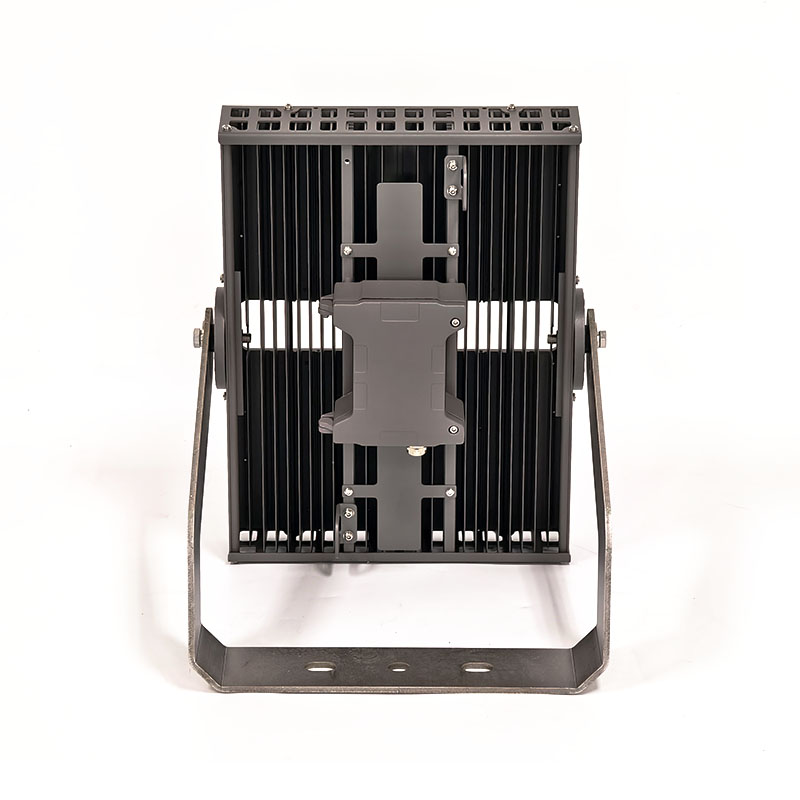

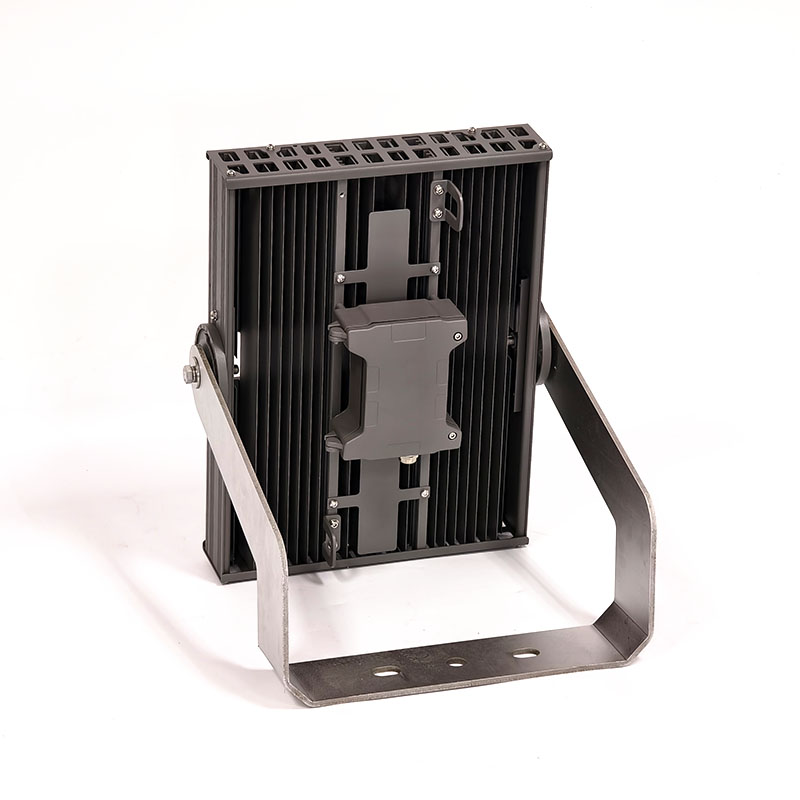

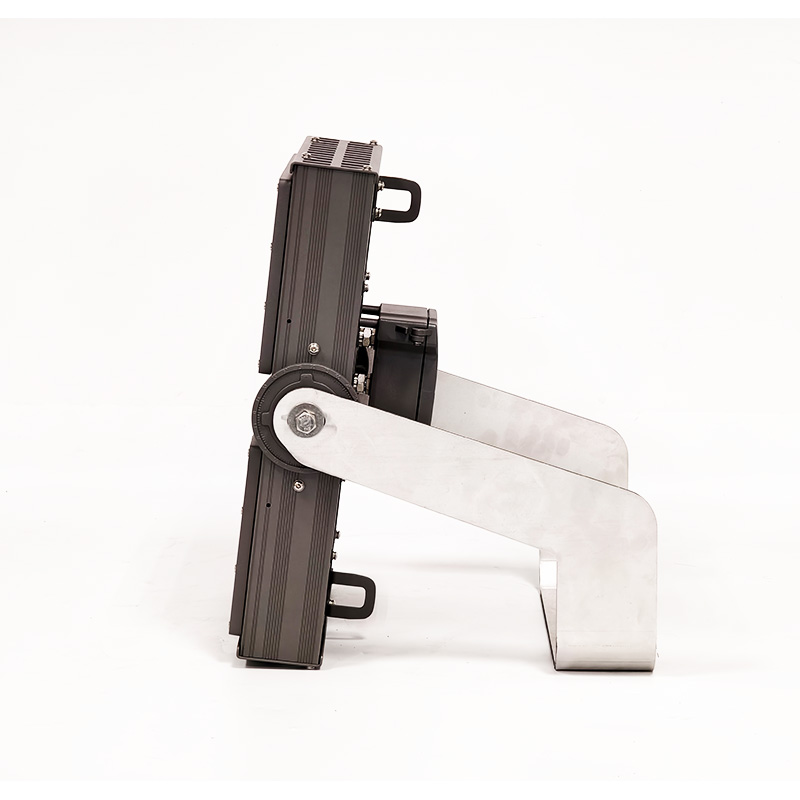

1000W / 1200WThe KFL1000 is the mainstay lighting solution in our series, built for standard-sized competitive venues. Upgraded to 1000W of power, the KFL1000 delivers greater luminous flux and a wider, uniform light field, easily meeting the requirements for illuminance and uniformity demanded by national or regional competitions.
Its specially designed high-strength aluminum alloy casing and excellent thermal management ensure stable performance and minimal lumen depreciation during prolonged, high-intensity use.
The KFL1000's projection distance and coverage are optimally enhanced, making it highly suitable for standard soccer fields, athletic tracks, or large multi-purpose sports halls. It is an ideal and reliable choice for achieving professional-grade event lighting effects.
Specification
| Model | KFL-1000 |
| Power | 1000 W |
| Total Luminous Flux | 170000 lm |
| Luminous Flux | 135000 lm |
| Voltage Range | AC 200~480 V |
| Frequency | 50 / 60 Hz |
| Correlated Colour Temperature | 5000 k |
| Colour Render Index | Ra80 |
| Protection | IP69K / IK10 |
| Lens Type | Asymmetric Flood / Medium / Narrow |
| Material | Aluminum Alloy & PC |
| Working Temperature | -40℃ ~ +50℃ |
| Luminaire Dimensions | 520×446×406 mm |
| Luminaire Weight | 20 kg |
| Remote Driver Box Dimensions | 480×152×80 mm |
| Remote Driver Box Weight | 5.02 kg |
Brightness Distribution Diagram
Simulation Condition：
Floodlight：4pcs
Height：7M
Projecting Angle：70°
Mining, Robust, SMD Design ◆ Five models with increasing consumption of power for your selection, from 160W, 250W, 350W, 500W to 600W, a balance between performance and budget ◆ It delivers a life expectancy over 50000 hours, thanks to advanced SMD design and MEANWELL driver ◆ High illuminating efficiency of 150LM/W ◆ Brightness won't decay easily from aging, it can maintain 95% of its full performance after 3 years(10 hours of use per day) ◆ UV resistant
