Road Maintenance, Disaster Relief and Such
◆ Trolley contains a cartridge battery that provides a longlasting 1536Wh capacity

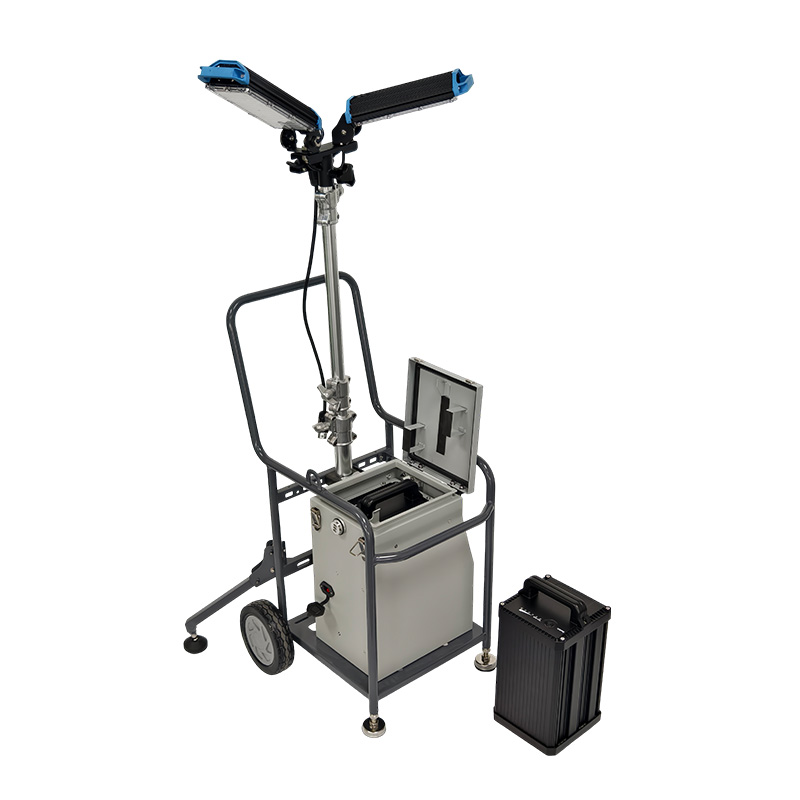

◆ Swappable cell unit that allows you to quickly replace empty cell with backup to stay in the work
◆ Lighting component-IP66, battery-IP65, battery storage compartment is also rainproof
◆ Maximum power comsumption of 150w can produce a stable 21300lm output
◆ 5-stage dimming and timer function
◆ Compact, lightweighted, makes it more accessible to move and transport
Model :
MKT2-150-NIngress / Impact Protection :
IP66 / IK09Working Temperature :
-40℃ ~ +50℃Lens Type :
Long Range FloodUnfolded Height :

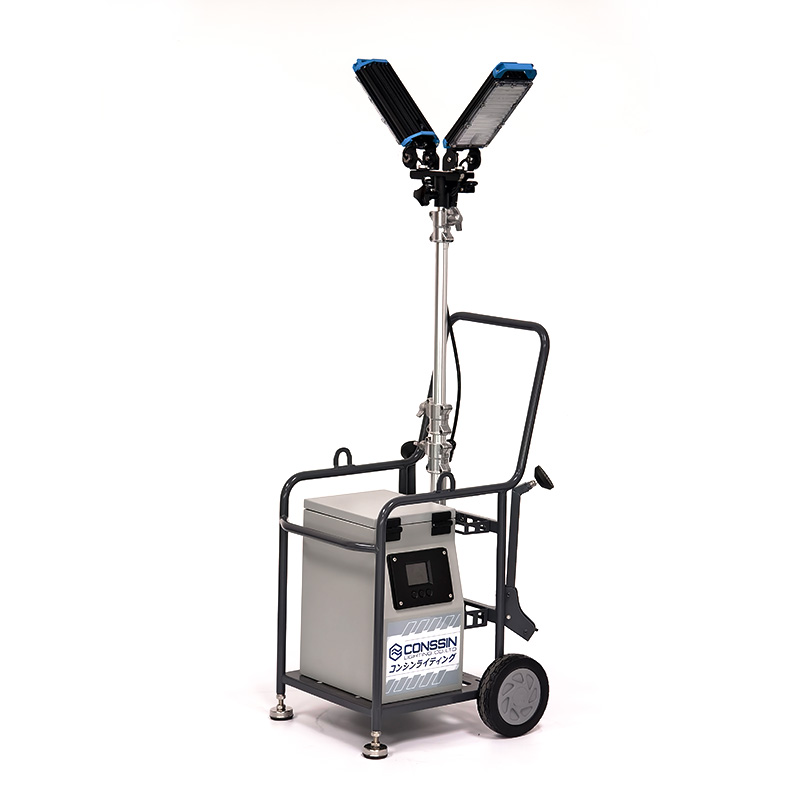

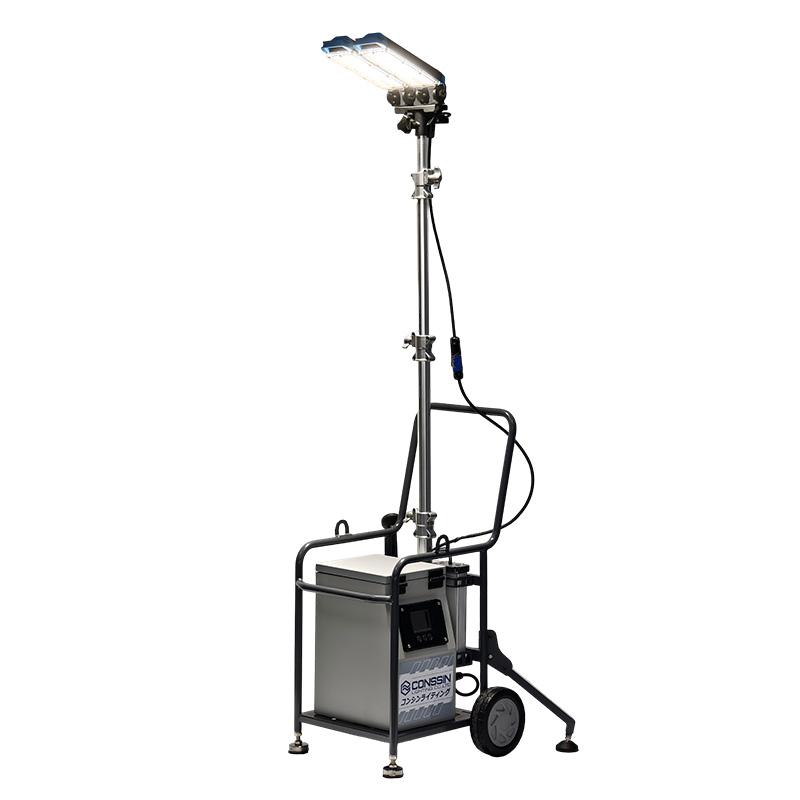

2.5MMKT2-150 mobile multi module floodlight is designed for harsh environment like mine and quarry, equiped with highest level of protection against dust, water, impact and viberation.
Fitted with high performance LED chips, self-developed light configuration and balanced heat dispersing structure, it can achieve an overall satisfying lighting effect.
Floodlight is not easy to degenerate over time, it can uphold 95% of the performance after 3 years, 10 hours per day.
Product standards
Light projector and trolley
| Model | MKT2-150 |
| Floodlight type | 4 pcs angle adjustable floodlight |
| Power | Maximum 150 W, dimmable |
| Full brightness | 26250 lm |
| Effective brightness | 21300 lm |
| Working time | 9.5 hours(max brightness) ~ 28 hours(min brightness) |
| Input voltage | AC 100~277 V |
| Frequency | 50 / 60 Hz |
| Color temperature | 5000 k |
| Color rendering | Ra70 |
| Protective performance | IP66 / IK10 |
| Lens type | Long-distance flood |

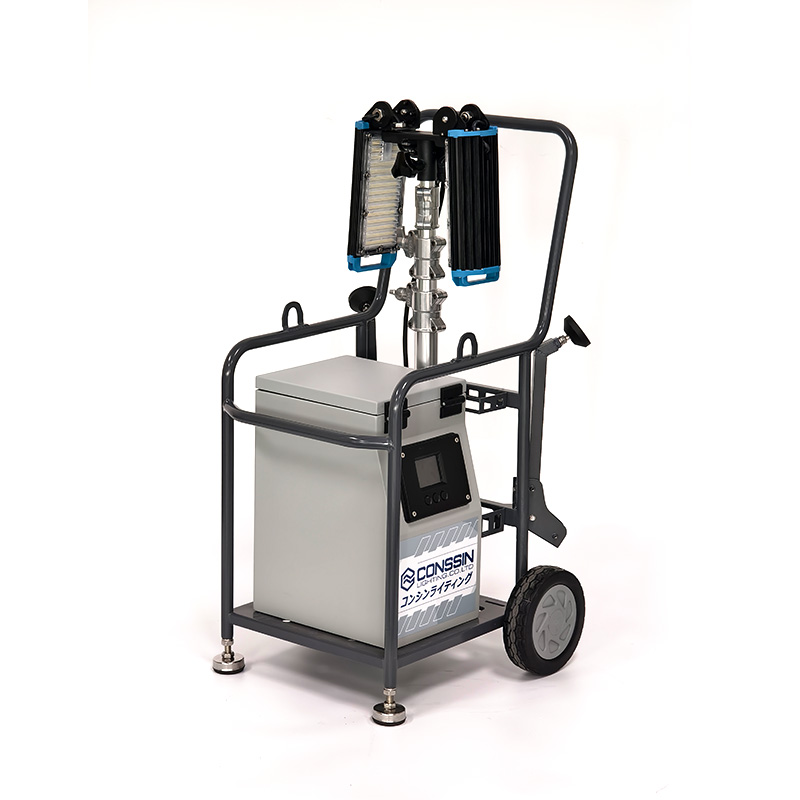

| Dimensions - When the light projector is folded | 828×517×875 mm |
| Dimensions - When the light projector is deployed |
828×517× (1300~2375) mm |
| Weight |
projector 7.5kg + trolley 31.5kg |

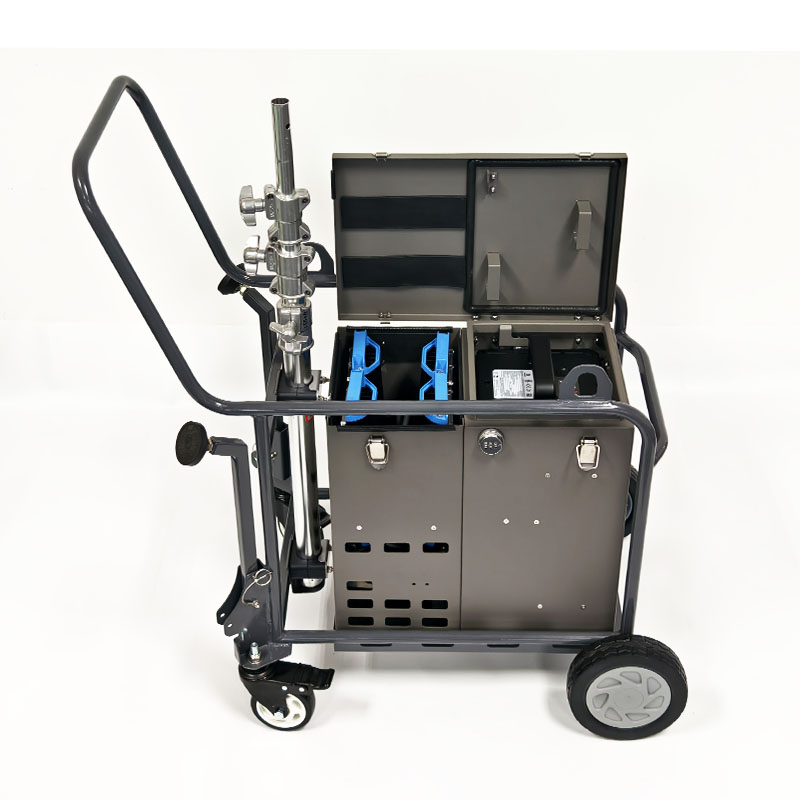

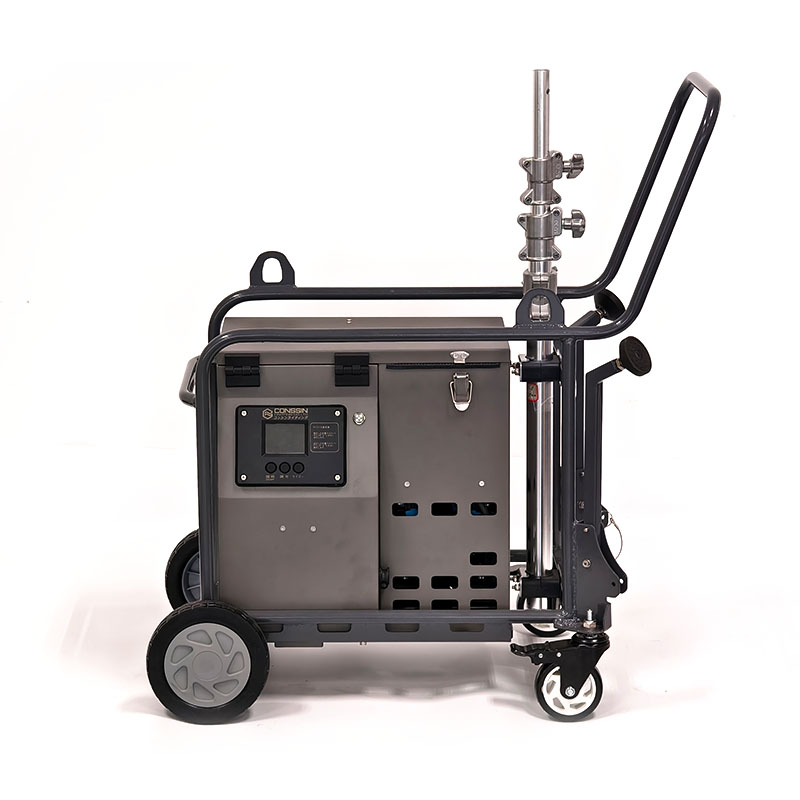

Cartridge-style battery
| Rated capacity | 1536Wh |
| Number of batteries used | 1 |
| Cell type | Lithium iron phosphate battery |
| Protective performance | IP65 |
| Charging time | About 4.5~5 hours, charging time varies depending on ambient temperature. |
| Charging method | With an external AC adapter. |
| Cooling method | Passive heat dissipation |
| Weight | 13.5kg |
Illuminance distribution diagram
360-degree irradiation (balloon mode)
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Spotlight mode
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
