Swift Deploy, Full Angle Adjustment, Lightweight Component
◆ Illumination directions and angles can be adjusted freely
◆ 5-stage dimming and timer function
◆ Ingress Rating IP67 rainproof
◆ Lightweight, easy to deploy tripod
Model :
MKT1Ingress / Impact Protection :
IP66 / IK10Working Temperature :
-40℃ ~ +50℃Lens Type :
Long Range FloodLight Power Consumption :
300W / 500WUnfolded Height :

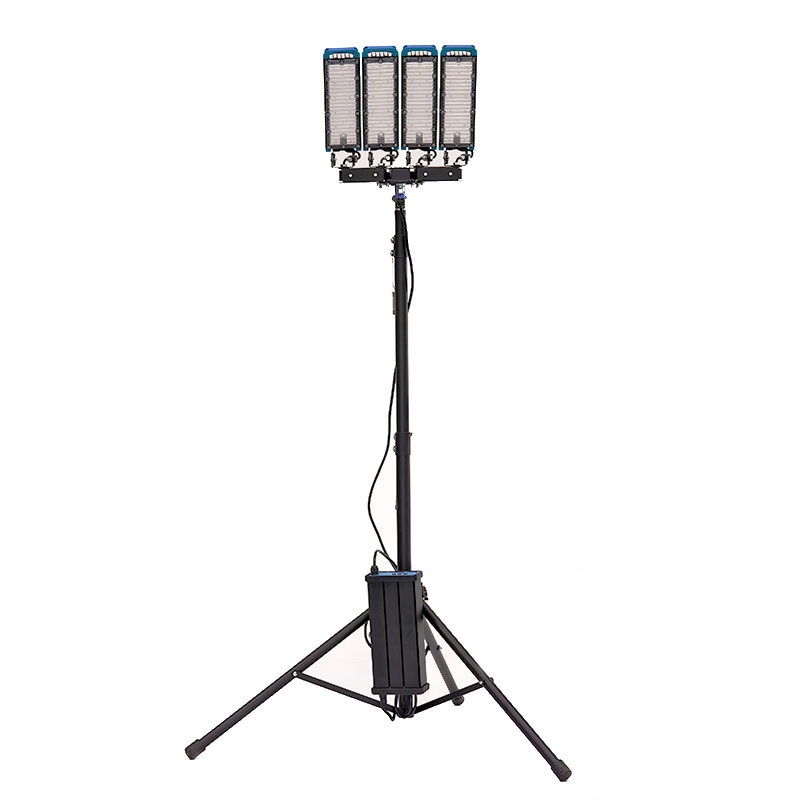

2.6MMKT1-320/480 mobile multi module floodlight is designed for harsh environment like mine and quarry, equiped with high level of protection against dust, water, impact and viberation.
Fitted with high performance LED chips, self-developed light configuration and balanced heat dispersing structure, it can achieve an overall satisfying lighting effect.
Floodlight is not easy to degenerate over time, it can uphold 95% of the performance after 3 years of usage, 10 hours per day.
| Model | MKT1-480 |
| Floodlight type | 4 pcs angle adjustable floodlight |
| Power | Maximum 480 W, dimmable |
| Effective brightness | 72000 lm |
| Input voltage | AC 100~277 V |
| Frequency | 50 / 60 Hz |
| Color temperature | 5000 k |
| Color rendering | Ra70 |
| Protective performance | IP66 / IK10 |
| Lens type | Long-distance flood |
| Dimensions - When the light projector is deployed |
255x230x370 mm |
| Weight |
7.4 kg(light) 5.8 kg(driver) 6 kg(tripod) 9.8 kg(case) |
Illuminance distribution diagram
360-degree irradiation (balloon mode)
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Spotlight mode
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Application scenarios
Swift Deploy, Full Angle Adjustment, Lightweight Component ◆ Illumination directions and angles can be adjusted freely ◆ 5-stage dimming and timer function ◆ Ingress Rating IP67 rainproof ◆ Lightweight, easy to deploy tripod
Read More
Road maintenance, Rapid Response Unit, Disaster Relief and Such. ◆ The ultra-lightweight model in the series ◆ Compact yet powerful, a 1440Wh battery can support 150W light for hours ◆ Lighting component-IP66, battery-IP65, battery storage compartment is also rainproof. ◆ Maximum power consumption of 150w can produce a stable 21300lm output.
Read More
Road Maintenance, Disaster Relief and Such ◆ Trolley contains a cartridge battery that provides a longlasting 1536Wh capacity ◆ Swappable cell unit that allows you to quickly replace empty cell with backup to stay in the work ◆ Lighting component-IP66, battery-IP65, battery storage compartment is also rainproof ◆ Maximum power comsumption of 150w can produce a stable 21300lm output ◆ 5-stage dimming and timer function ◆ Compact, lightweighted, makes it more accessible to move and transport
Read More
Sturdy, Auto Lifting Rod, High Mast ◆ A heavier retractable quadpod further improve its steadiness ◆ Maximum power comsumption of 500w can produce a stable 70000lm output. ◆ 0 to 100% dimming function ◆ Its mast can reach a maximum height of 5 m with just a push of button
Read More
