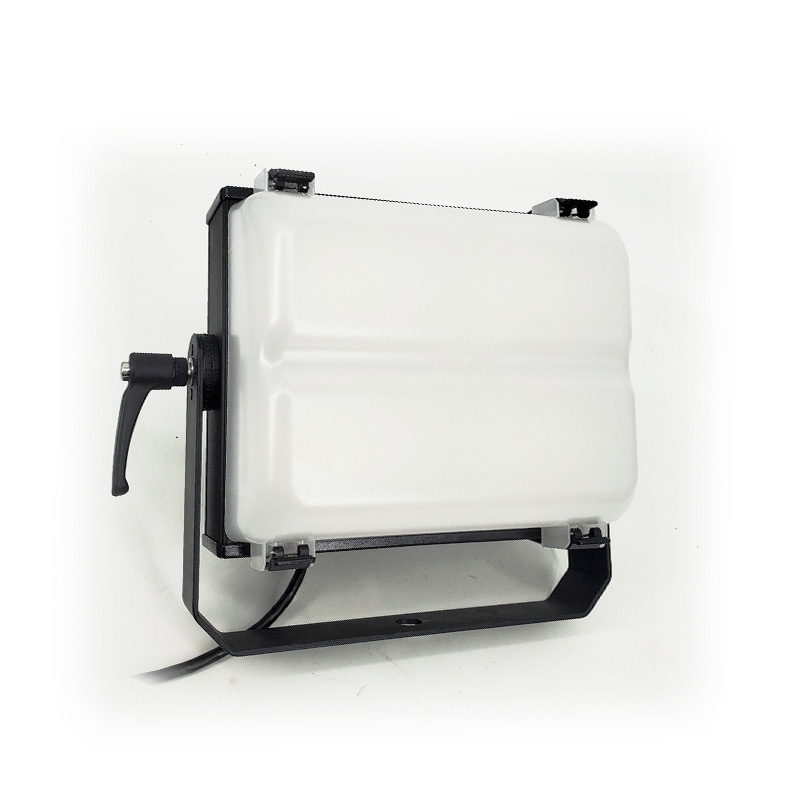

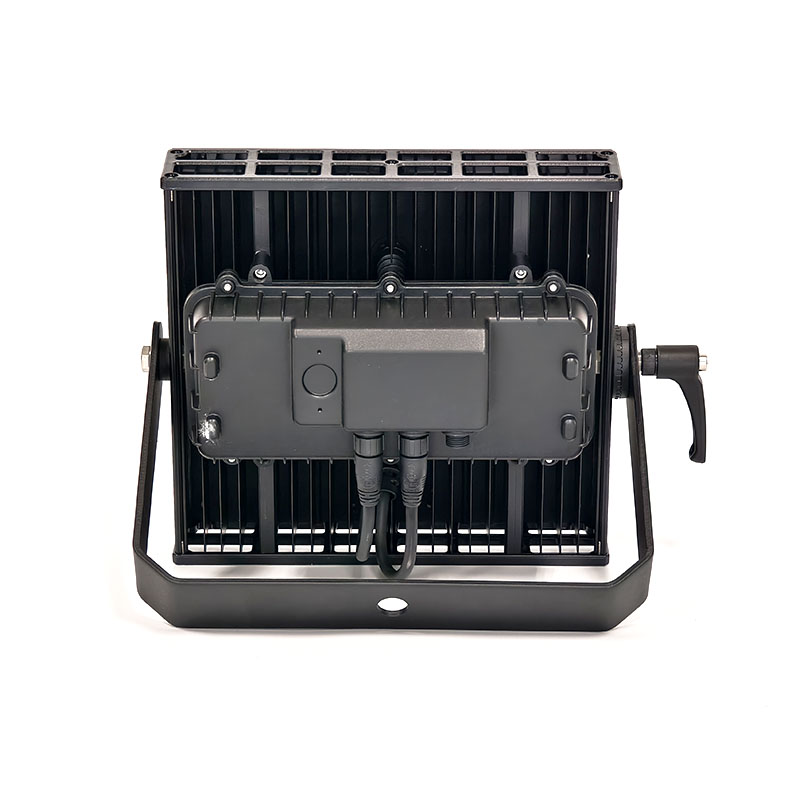

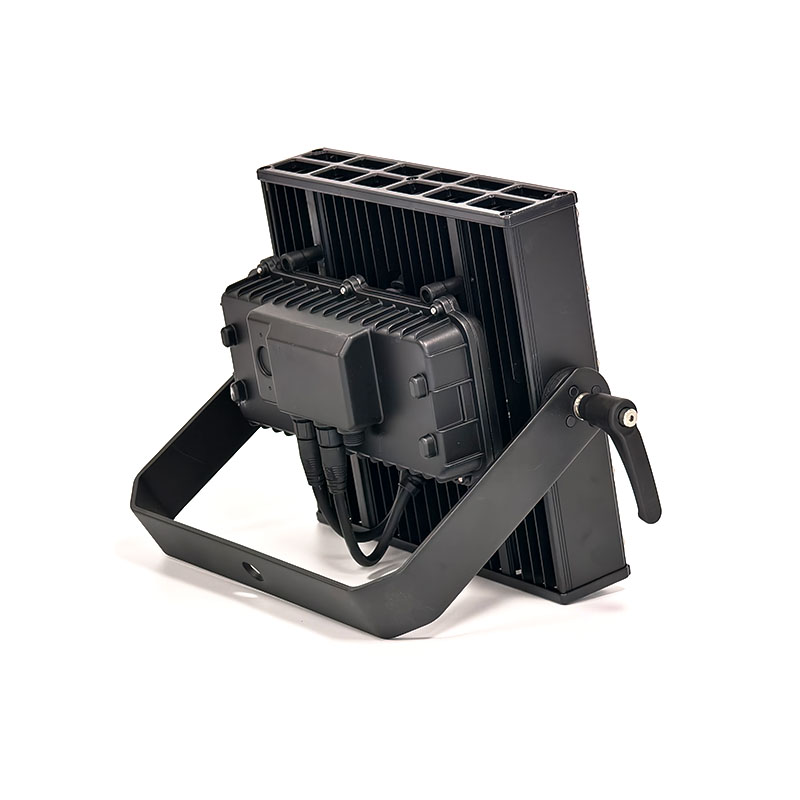

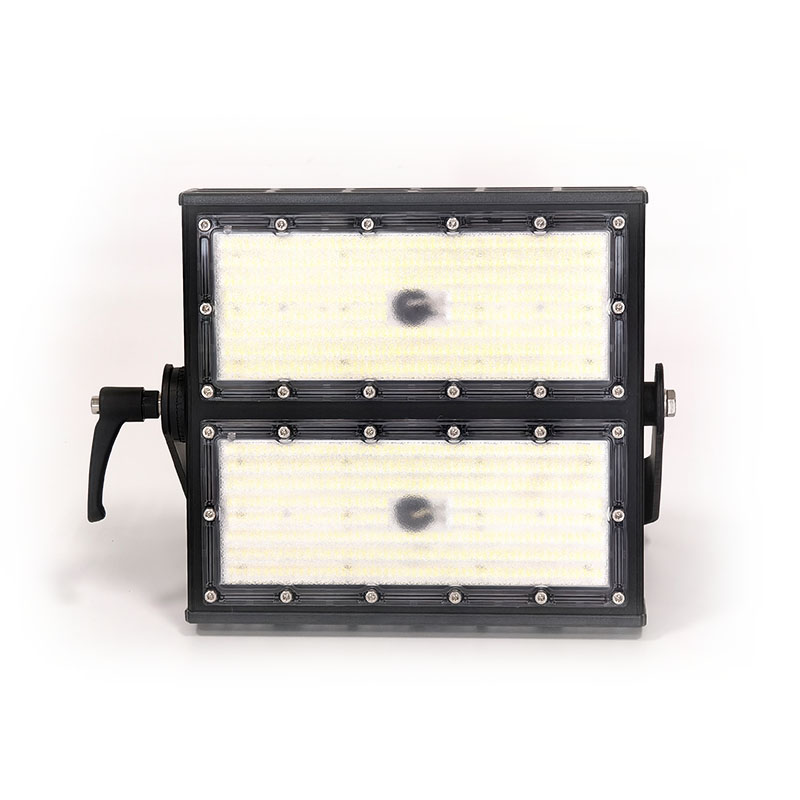

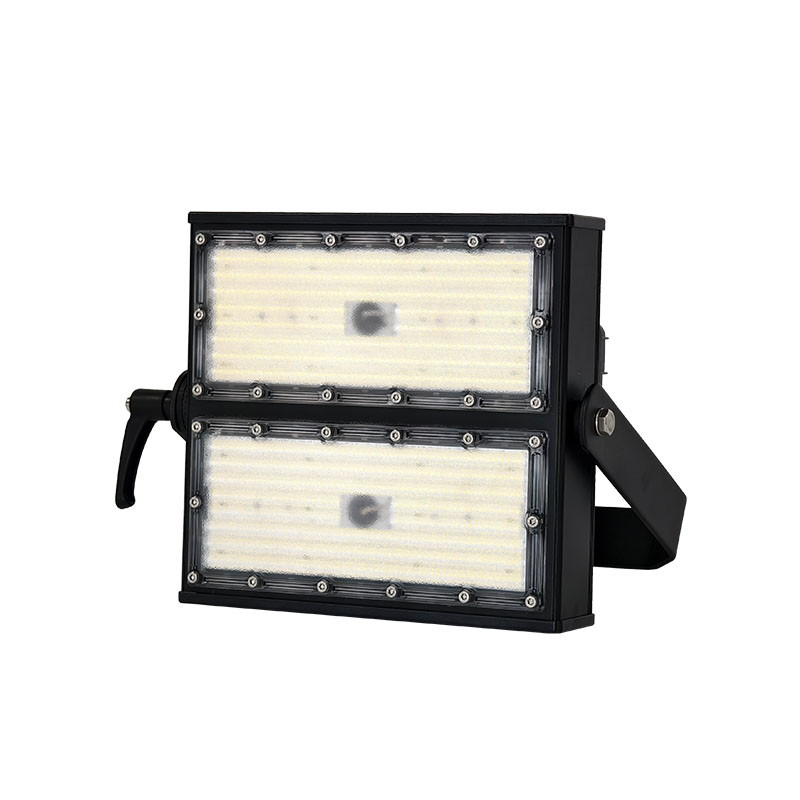

IP69 High Efficiency Flood Light KUHS (SMD)
Mining, Robust, SMD Design
◆ Five models with increasing consumption of power for your selection, from 160W, 250W, 350W, 500W to 600W, a balance between performance and budget
◆ It delivers a life expectancy over 50000 hours, thanks to advanced SMD design and MEANWELL driver
◆ High illuminating efficiency of 150LM/W
◆ Brightness won't decay easily from aging, it can maintain 95% of its full performance after 3 years(10 hours of use per day)
◆ UV resistant
Ingress / Impact Protection :
IP69K / IK10Working Temperature :
-40℃ ~ +50℃Material :
Aluminum alloy & PolycarbonateLens Type :
Long Range FloodLight Power Consumption :
160W ~ 600WCertification :
CE, CB, CSA, PSE, ENEC, SAAThe KUHS series floodlights are developed with the premise of being used in harsh environments such as mines, featuring top-tier dustproof, waterproof, impact-resistant, and vibration-resistant performance.
Additionally, with high-brightness SMD LED chips, unique high-efficiency light distribution, and a well-balanced heat dissipation structure, it delivers comprehensive superior lighting performance.
Whatsmore, the floodlight is resistant to degradation and maintains over 95% of its performance even after three years of use (10 hours per day).
Specification
| Model | KUH2S-350 |
| Power | 350 W |
| Total Luminous Flux | 61250 lm |
| Luminous Flux | 50750 - 52500 lm |
| Voltage Range | AC 100~277 V |
| Frequency | 50 / 60 Hz |
| Correlated Colour Temperature | 5000 k |
| Colour Render Index | 70 Ra |
| Protection | IP69K / IK10 |
| Lens Type | Long Flood |
| Material | Aluminum Alloy |
| Dimensions | 363×404×170 mm |
| Weight | 8.9 kg |
Brightness Distribution Diagram
Simulation Condition：
Floodlight：4pcs
Height：7M
Projecting Angle：70°

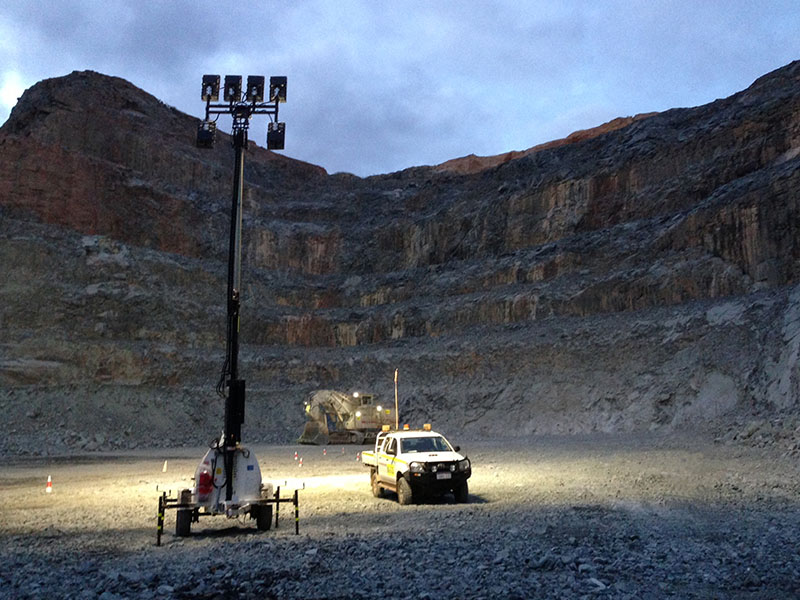

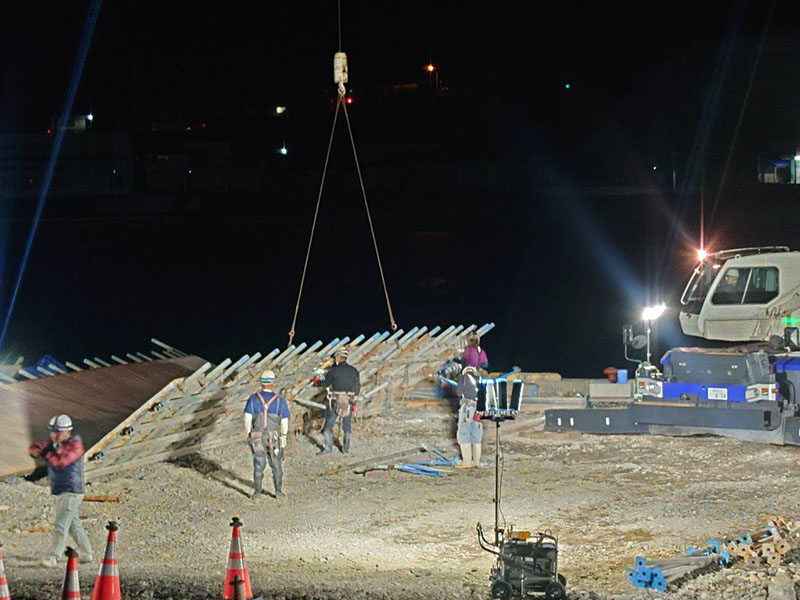

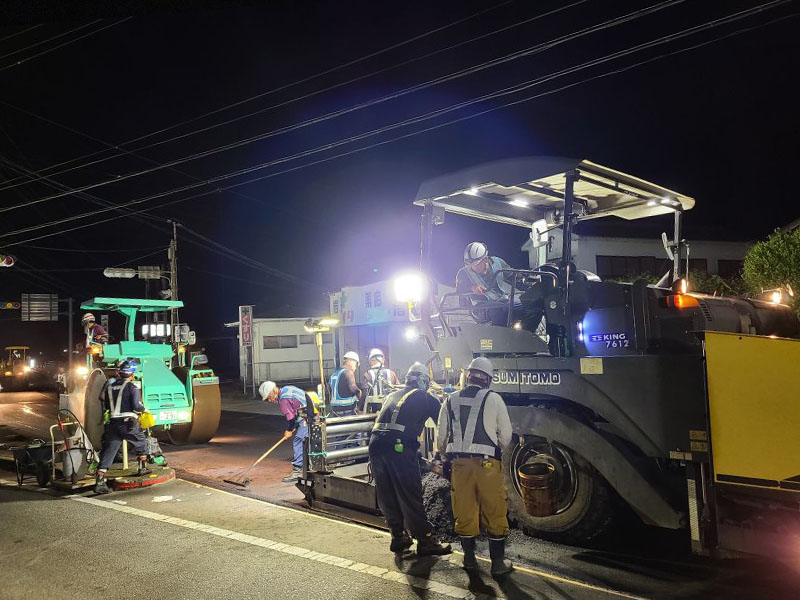

DESIGNED FOR USE IN :
