Large Scale, Professional, Heavyduty
◆ Reduced glare, improved color rendering
◆ Works well on a high mast
◆ UV countermeasure applied
Ingress / Impact Protection :
IP69K / IK10Working Temperature :
-40℃ ~ +50℃Material :
Aluminum alloy & PolycarbonateCRI :
Ra80Lens Type :
Asymmetric Flood / Medium / NarrowLight Power Consumption :

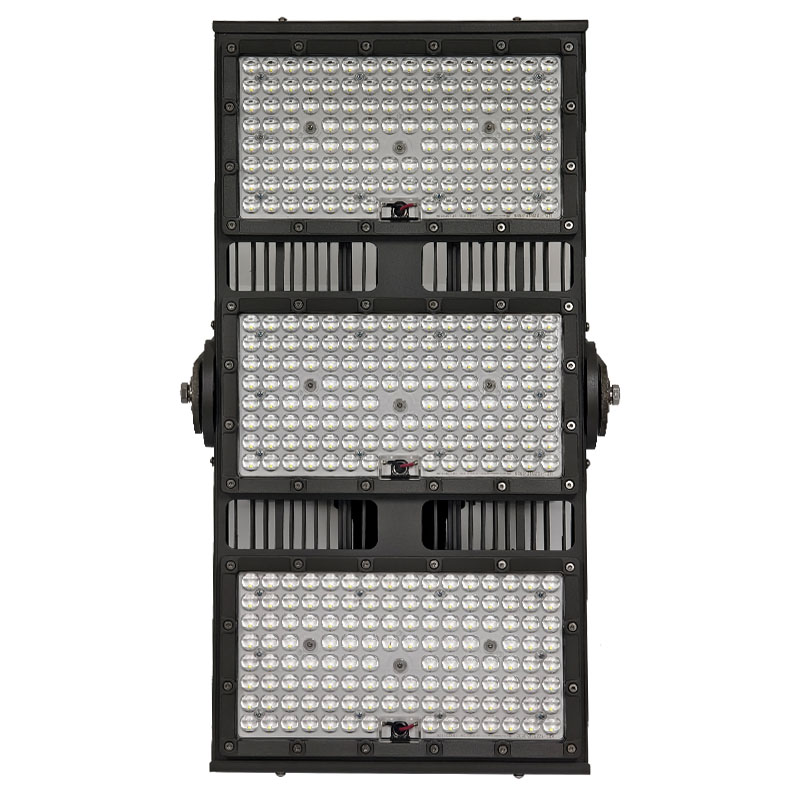

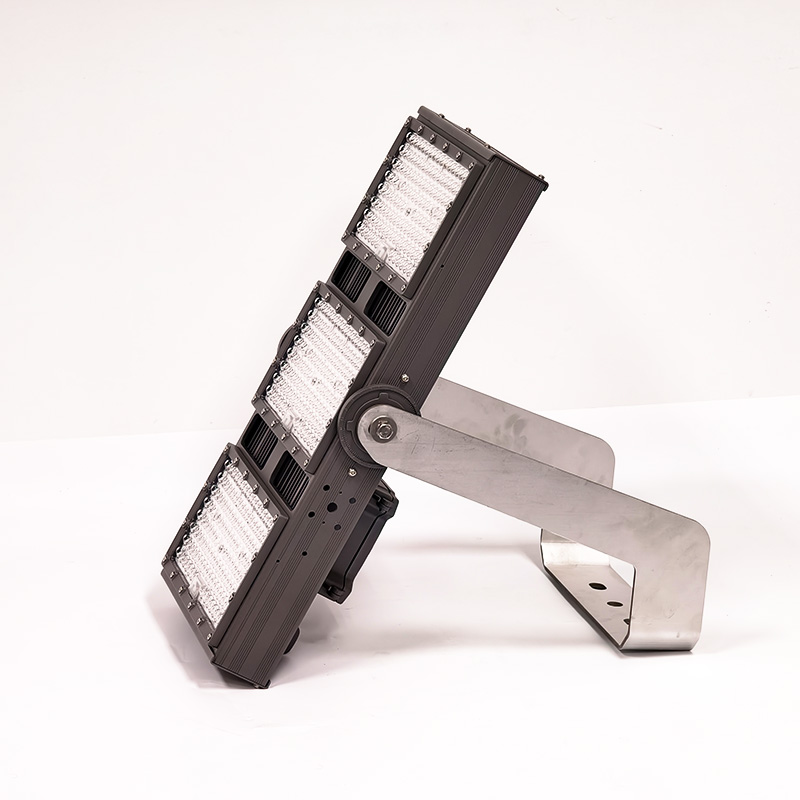

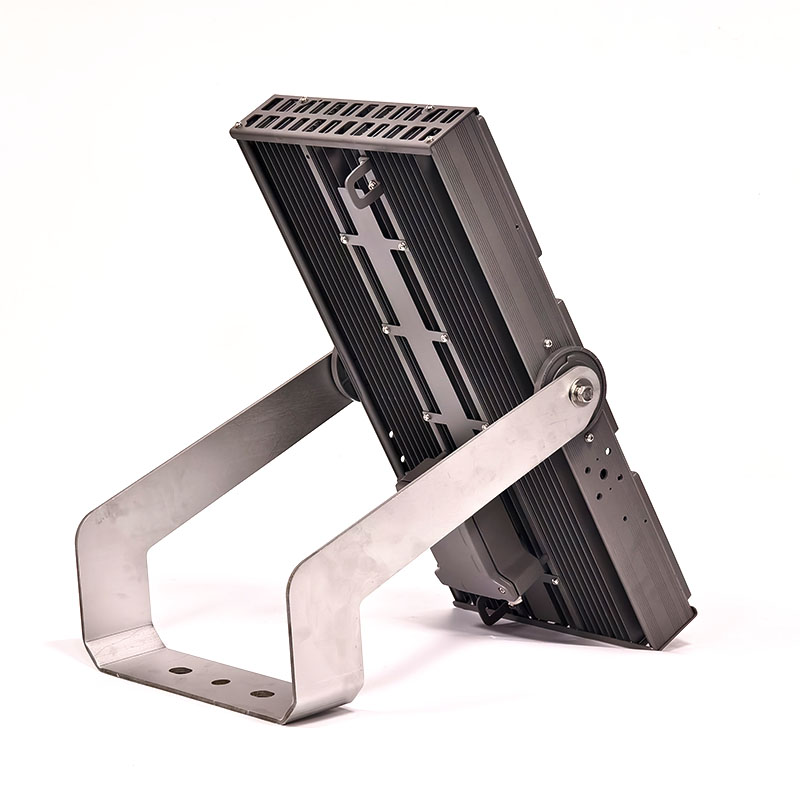

1500W / 1800WThe KFL1500 is a high-performance floodlight developed for large stadiums or venues requiring high-mast lighting. With its powerful 1500W output and optimized long-distance projection optical system, the KFL1500 effectively overcomes the challenges of high mounting positions, ensuring a high level of average illuminance is maintained across extra-large areas.
The KFL1500 design focuses on the stability and reliability of electrical performance, featuring excellent anti-interference capabilities and efficient power management, making it suitable for sports activities with elevated lighting quality requirements. Choosing the KFL1500 means you gain a powerful and dependable lighting core that provides solid illumination assurance for high-standard competitions and large-scale events.
Specification
| Model | KFL-1500 |
| Power | 1500 W |
| Total Luminous Flux | 255000 lm |
| Luminous Flux | 202500 lm |
| Voltage Range | AC 200~480 V |
| Frequency | 50 / 60 Hz |
| Correlated Colour Temperature | 5000 k |
| Colour Render Index | Ra80 |
| Protection | IP69K / IK10 |
| Lens Type | Asymmetric Flood / Medium / Narrow |
| Material | Aluminum Alloy & PC |
| Working Temperature | -40℃ ~ +50℃ |
| Luminaire Dimensions | 816×446×517 mm |
| Luminaire Weight | 27 kg |
| Remote Driver Box Dimensions | 480×152×80 mm |
| Remote Driver Box Weight | 6.4 kg |

Brightness Distribution Diagram
Simulation Condition:
Floodlight:4pcs
Height:7M
Projecting Angle:70°
