Outdoor Camping, Heavy Rain
◆ IP67 fully waterproof rating
◆ Ultra-high performance in impact resistance and vibration resistance
◆ Capacity and power can be expanded with the parallel operation system
◆ Monitor the charging and discharging status with a highly stable self-developed BMS
◆ It uses highly safe lithium iron phosphate batteries
◆ Equipped with a fire suppression system as reassurance
◆ UPS function (Uninterruptible Power Supply)
Ingress / Impact Protection :
IP65 / IK09Working Temperature :
-20℃ ~ 45℃Nominal Energy :
2160WhMaximum Output Power :
2000WWeight :

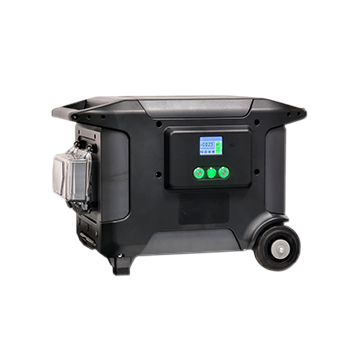

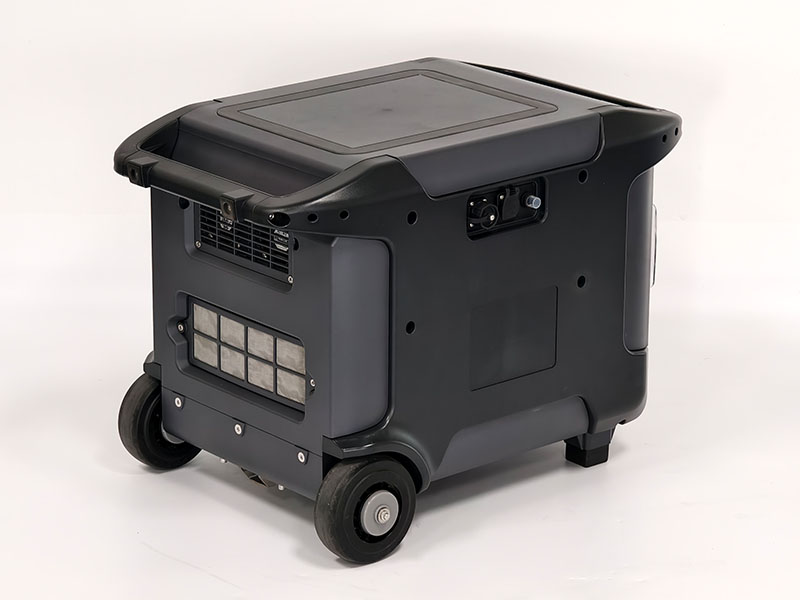

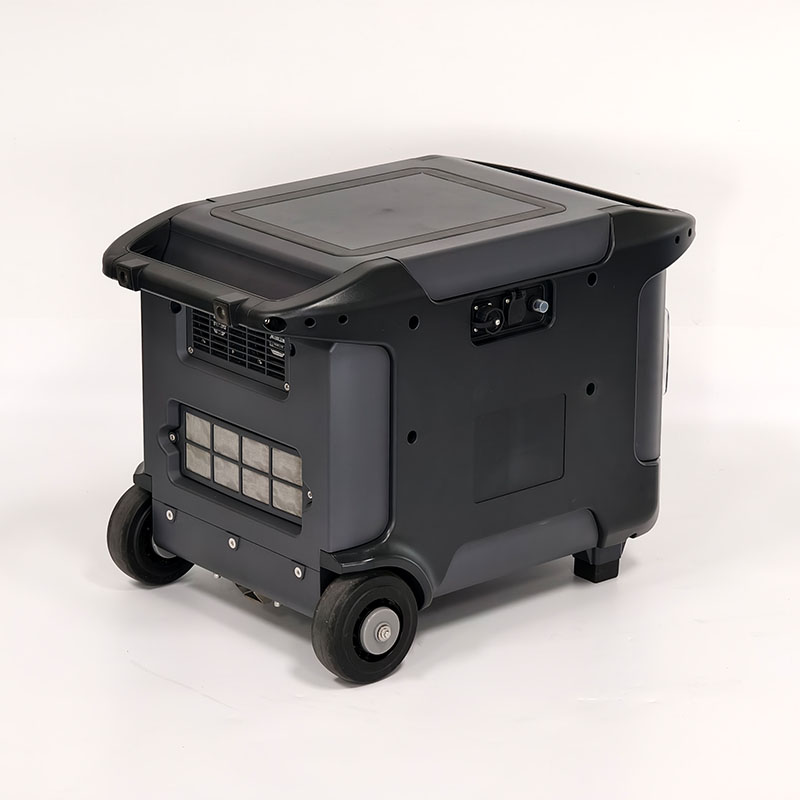

40kgThe KPS-0202 fully waterproof portable power station is specifically designed for outdoor use, featuring IP67 dustproof and waterproof performance, as well as the best impact and vibration resistance for industrial tools.

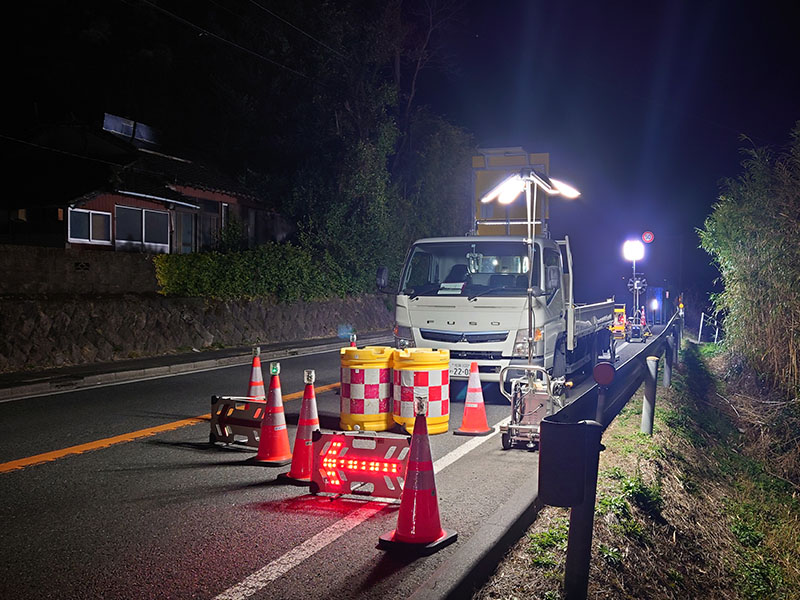

At outdoor locations without outlets, such as camping and road construction sites, electrical appliances can be used regardless of whether it is sunny or rainy.
With high battery capacity and power, it can also support high power industrial appliances. Additionally, by using the parallel operation function with multiple portable power stations, even higher capacity and AC power output can be achieved.
Rated capacity: 2160Wh
Power: 2000W
Overload power: 2500W
AC outlet: 100V grounded 2P x 2
DC outlet: USB-A x 1, USB-C x 1
AC charging time: 3 hours
Solar charging: up to 800W
Expansion 1: Use parallel cord to enable parallel operation with two units.
Expansion 2: Using the expansion connector, parallel operation with 3 to 5 units is possible.
Cycle life: Capacity ≥80% after 2000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Fire extinguishing device: Aerosol type (oxygen cutoff)
UPS (Uninterruptible Power Supply): Operation switching time ≤10ms (milliseconds)
Application scenarios
製品規格
| Model | KPS-0202 |
| Rated capacity | 2160 Wh |
| Rated power | 2000 W |
| Charging time | ≈3 hours (under the condition of 25℃ ambient temperature) |
| Weight | ≈40kg |
| Dimension | L565 x W468 x H440 mm |
| Battery type | Lithium iron phosphate ion(LFP) |
| IP rating | IP65 |
| IK rating | IK09 |
| Rated voltage | 100VAC ±4% |
| Rated current | 20A |
| Frequency | 50Hz/60Hz |
| Outlet type | 125V・grounded 2P × 3 port |
