Accessory,

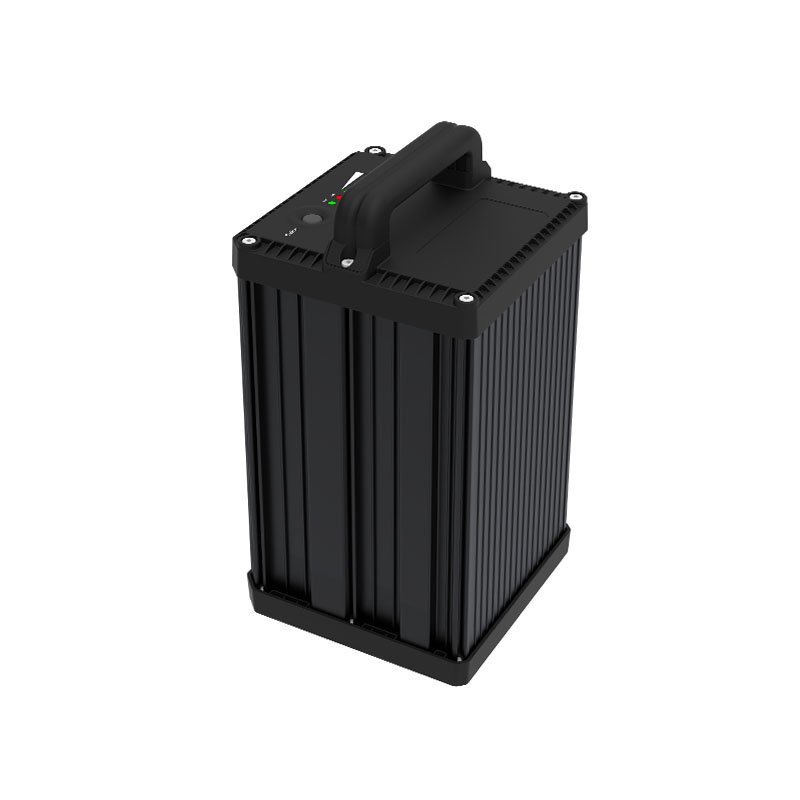

◆ Cartridge design with a carrying handle
◆ Ultra-high performance in impact resistance and vibration resistance
◆ Small size, strong output
◆ A built-in BMS that optimizes battery's charging and discharging progress
◆ Made with LFP cells that known for its high safety and long lifespan
◆ Equipped with a self heating system for better performance under cold condition
Model :
CSP-1280Ingress / Impact Protection :
IP65Working Temperature :
-10℃ ~ 60℃ Charge; -20℃ ~ 60℃ DischargeNominal Energy :
1280WhMaximum Output Power :
1280WWeight :
≈13.5kgCSP-1280 has IP65 dustproof and waterproof performance, and high impact and vibration resistance. This model is especially suitable for remote, high altitude locations.
This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.
Rated capacity: 1280Wh
Power: 1280W
Nominal Voltage: 12.8V DC
Working Temperature: -10℃ ~ 60℃ Charge
-20℃ ~ 60℃ DischargeCommunication: RS485, CAN
Configuration: 16pcs
Ingress Rating: IP65
Cycle life: Capacity ≥80% after 5000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Application scenarios
Spec sheet
| Model | CSP-1280 |
| Rated Energy | 1242 Wh |
|
Nominal Voltage |
12.8V DC |
|
Nominal capacity |
100Ah |
|
Rated output power |
Max 1280W |
|
Depth of discharge |
95% |
|
Working Temperature |
-10℃ ~ 60℃ Charge; -20℃ ~ 60℃ Discharge |
| Battery type | Lithium iron phosphate ion(LFP) |
|
Communication |
RS485, CAN |
|
Configuration |
16pcs |
|
Weight |
≈12kg |
|
Dimension |
L360 x W1179 x H179 mm |
|
Cell type |
LFP |
|
Cooling type |
Passive |
|
Breaker |
NO |
|
Ingress Rating |
IP65 |
|
Humidity |
5% ~ 95%(RH) No condensation |
|
Cycle life |
Battery capacity ≥80% after 5000 cycle (At an ambient temperature of 25℃, 0.2C) |
