Residential Power Backup, Energy Storage System Component, Off-grid Work Site
◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments
◆ Ultra-high performance in impact resistance and vibration resistance
◆ Parallel function can support up to 16 batteries, to form up a small scale ESS
◆ A built-in BMS that optimizes battery's charging and discharging progress
◆ Made with LFP cells that known for its high safety and long lifespan
◆ Equipped with a self heating system for better performance under cold condition
Model :
CSP-5120Ingress / Impact Protection :
IP65Working Temperature :
0℃ ~ 50℃ Charge; -20℃ ~ 50℃ DischargeNominal Energy :
5120WhMaximum Output Power :
5120WWeight :

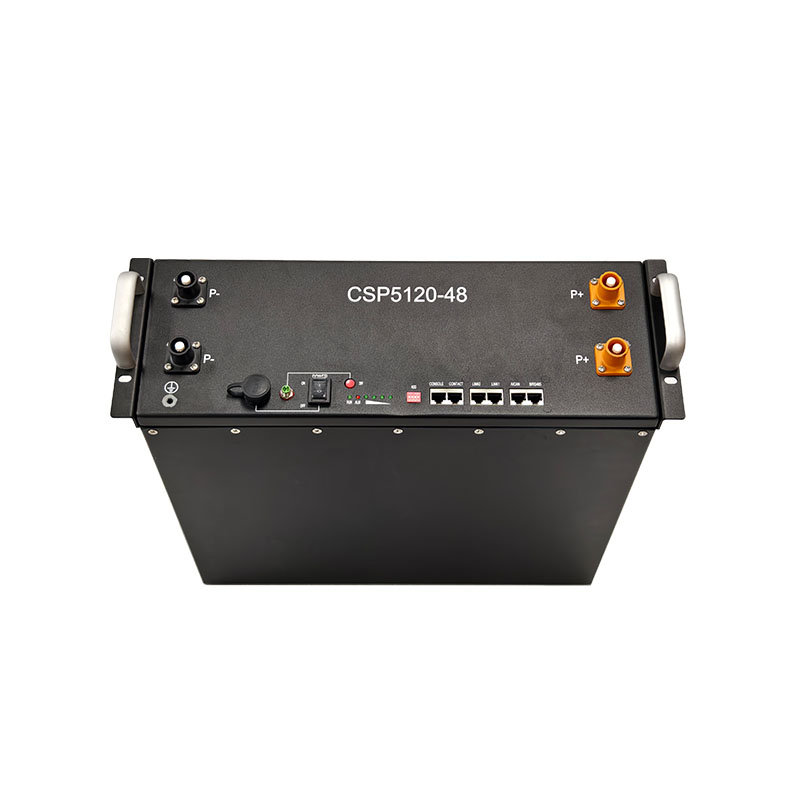

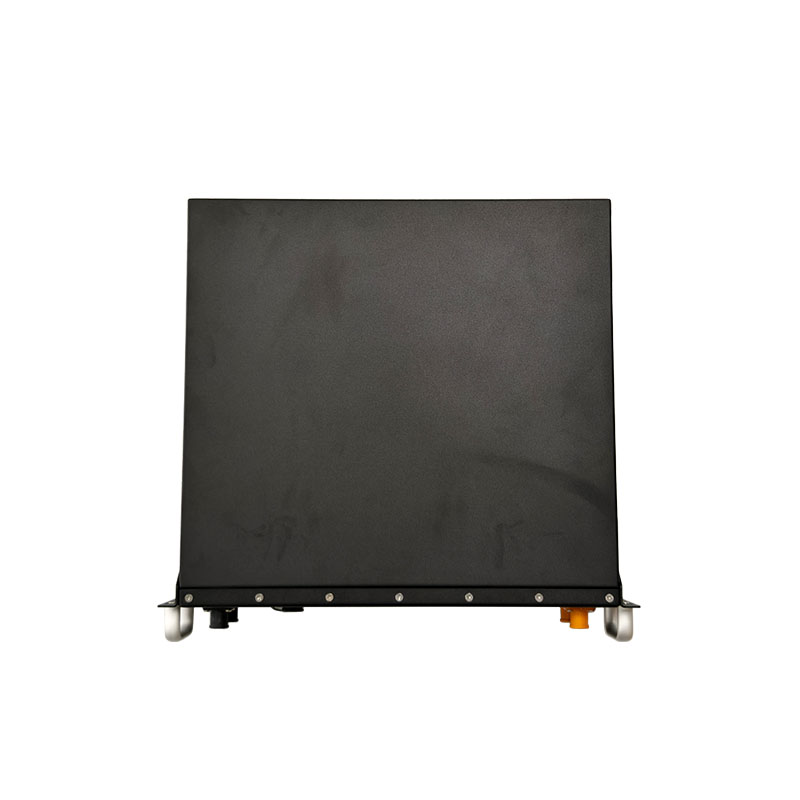

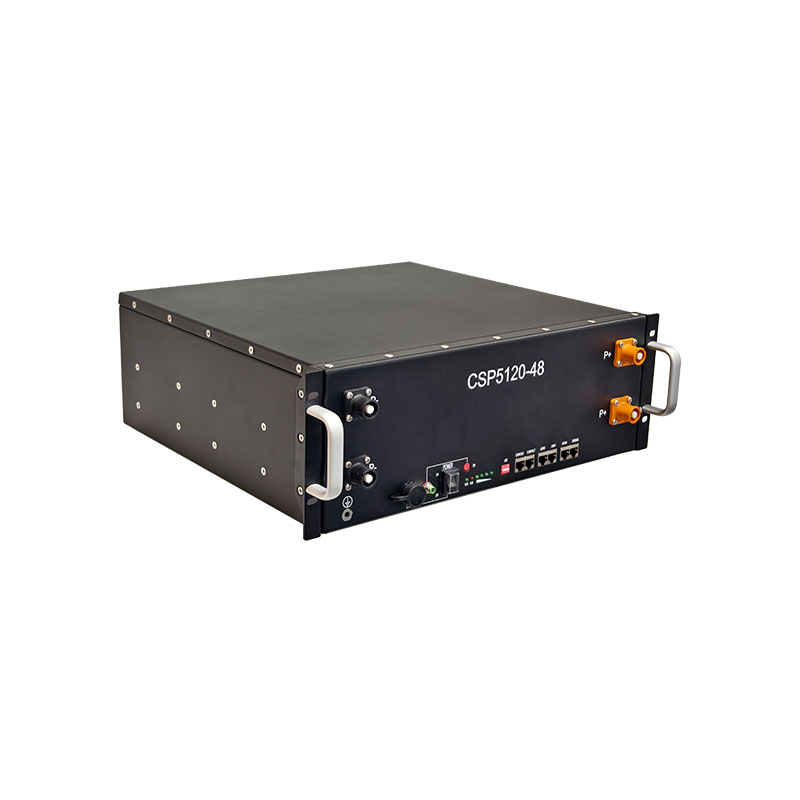

≈50kgCSP-5120 battery pack is mainly developed as parts of ESS. It has IP65 dustproof and waterproof performance, and high impact and vibration resistance.
This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.
Rated capacity: 5120Wh
Power: 5120W
Nominal Voltage: 51.2V DC
Working Temperature: 0℃ ~ 50℃ Charge
-20℃ ~ 50℃ DischargeCommunication: RS485, CAN
Configuration: 16pcs
Ingress Rating: IP65
Cycle life: Capacity ≥80% after 5000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Application scenarios
Spec sheet
| Model | CSP-5120 |
| Rated Energy | 5120 Wh |
|
Nominal Voltage |
51.2V DC |
|
Nominal capacity |
100Ah |
|
Rated output power |
Max 5120W |
|
Depth of discharge |
95% |
|
Working Temperature |
0℃ ~ 50℃ Charge; -20℃ ~ 50℃ Discharge |
| Battery type | Lithium iron phosphate ion(LFP) |
|
Communication |
RS485, CAN |
|
Configuration |
16pcs |
|
Weight |
≈50kg |
|
Dimension |
L482 x W458 x H161 mm |
|
Cell type |
LFP |
|
Cooling type |
Passive |
|
Breaker |
NO |
|
Ingress Rating |
IP65 |
|
Humidity |
5% ~ 95%(RH) No condensation |
|
Cycle life |
Battery capacity ≥80% after 5000 cycle (At an ambient temperature of 25℃, 0.2C) |
