Data Center Power Backup, Commercial Energy Storage, Heavyduty Industrial Power Source
◆ Multi-input management
◆ Outdoor grade IP54 protection
◆ 160% overload surge tolerence
◆ High altitude and low temperature adaptive
◆ Comprehensive fire detection, warning and suppression system
Model :
CSP-80Ingress / Impact Protection :
IP54Working Temperature :
-30℃ ~ 45℃Nominal Energy :
83,200WhMaximum Output Power :
50,000WWeight :

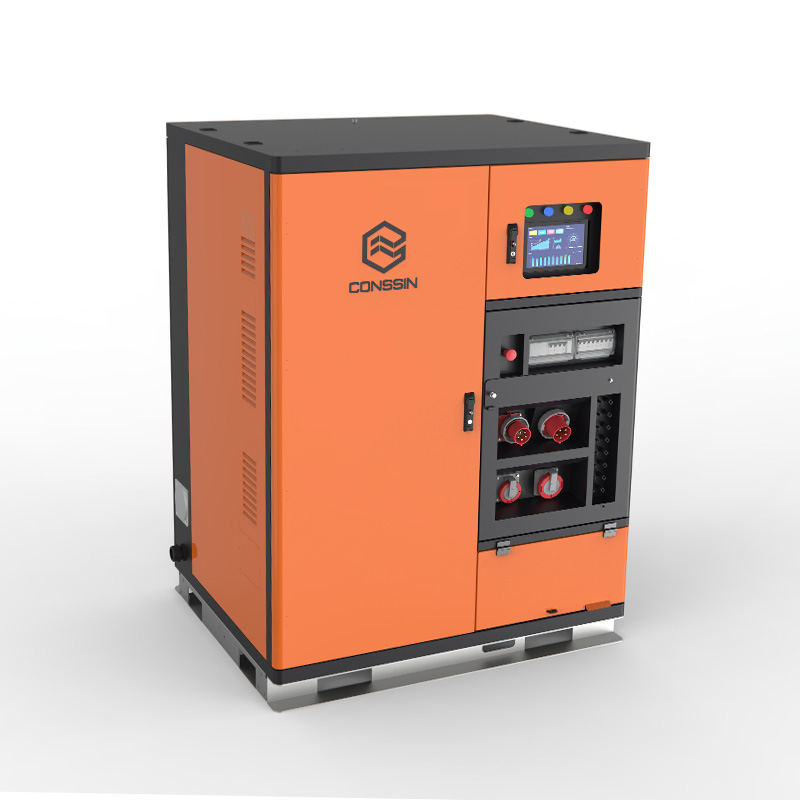

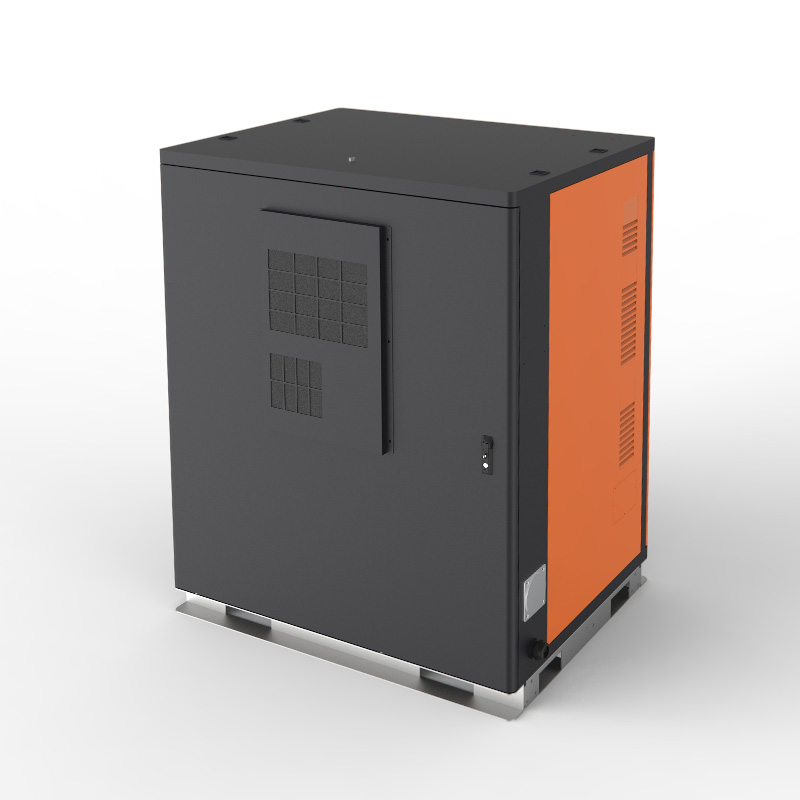

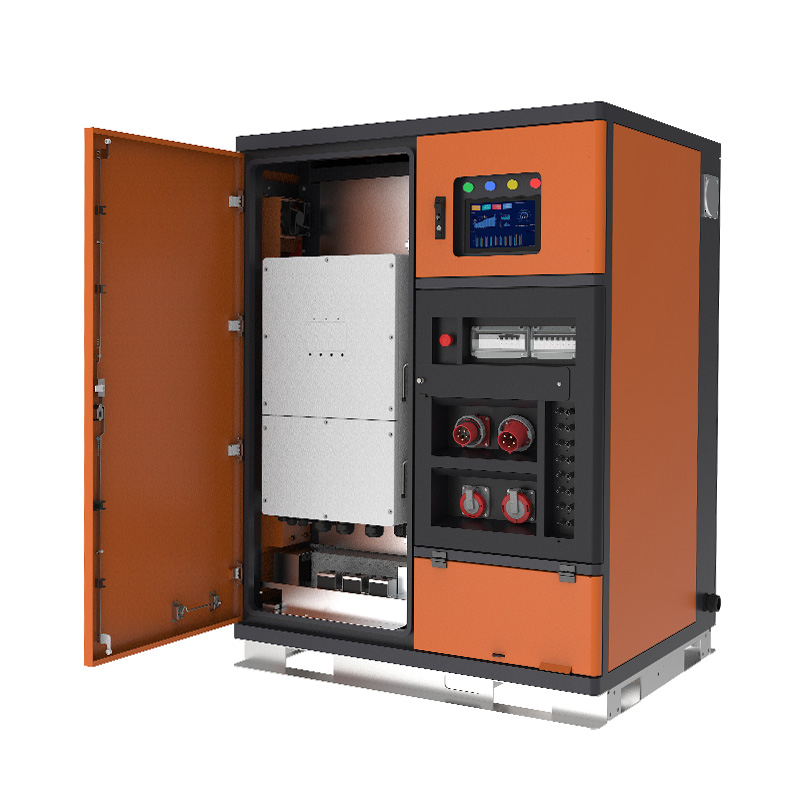

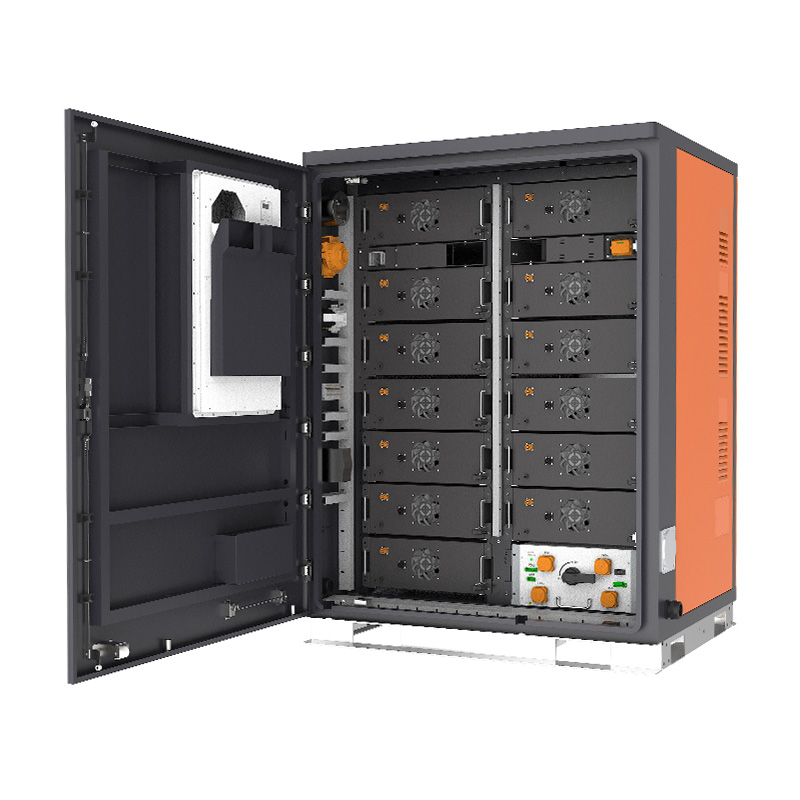

≈1300kgCPS-80 energy storage system is Conssin's latest solution to the commercial market. It's self-sustainable in areas where the grid power is completely inaccessible, provided with solar input and generators.
In terms of output, it can withstand a temporary 160% of its rated current, allowing it to jump-start some of the heavy industrial equipments.
In medical or data storage field, where the safety and reliability is the top priority, CPS-80's fire supression system and UPS will keep the valuable asset intact in the event of grid failure.
Rated capacity: 583,200Wh
Power: 50,000W
Nominal Voltage: 665.6V DC
Working Temperature: -30℃ ~ 45℃
Communication: RS485, CAN
Battery Module Quantity Serise: 13pcs
Ingress Rating: IP54
Cycle life: >6000 @25℃, 0.5C/0.5C, EOL70%
Application scenarios
Spec sheet
| Model | CPS-80 |
| Rated Energy | 83,200 Wh |
|
Nominal Voltage |
665.6V DC |
|
Nominal capacity |
125Ah |
|
Rated output power |
Max 50,000W |
|
Depth of discharge |
95% |
|
Working Temperature |
-30℃ ~ 45℃ Discharge |
| Battery type | Lithium iron phosphate ion(LFP) |
|
Communication |
RS485, CAN |
|
Battery Module Quantity Series |
13pcs |
|
Weight |
≈1300kg |
|
Dimension |
L1140 x W1375 x H1850 mm |
|
Cell type |
LFP |
|
Cooling type |
Active air cooling |
|
Altutide |
≤3000m |
|
Ingress Rating |
IP54 |
|
Humidity |
5% ~ 85%(RH) No condensation |
|
Cycle life |
>6000 @25℃, 0.5C/0.5C, EOL70% |
Outdoor Camping, Heavy Rain ◆ IP67 fully waterproof rating ◆ Ultra-high performance in impact resistance and vibration resistance ◆ Capacity and power can be expanded with the parallel operation system ◆ Monitor the charging and discharging status with a highly stable self-developed BMS ◆ It uses highly safe lithium iron phosphate batteries ◆ Equipped with a fire suppression system as reassurance ◆ UPS function (Uninterruptible Power Supply)
