Industrial, High Power, Robust, High Capacity
◆ IP54 grade dustproof and waterproof performance
◆ Ultra-high performance in impact resistance and vibration resistance
◆ Monitor the charging and discharging status with a highly stable self-developed BMS
◆ EV-grade LFP cells
◆ No combustion if thermal runaway happens
◆ Power output up to 6000W, it can drive multiple industrial tools at the same time
Model :
CPS-6000Ingress / Impact Protection :
IP54 / IK09Working Temperature :
-20℃ ~ 45℃Nominal Energy :
6400WhMaximum Output Power :
6000WWeight :

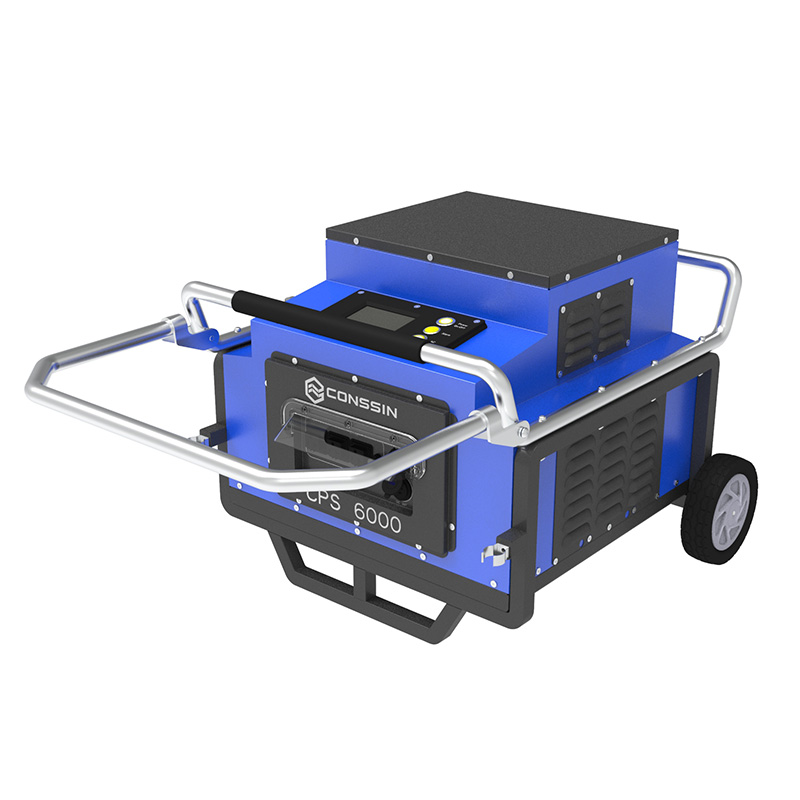

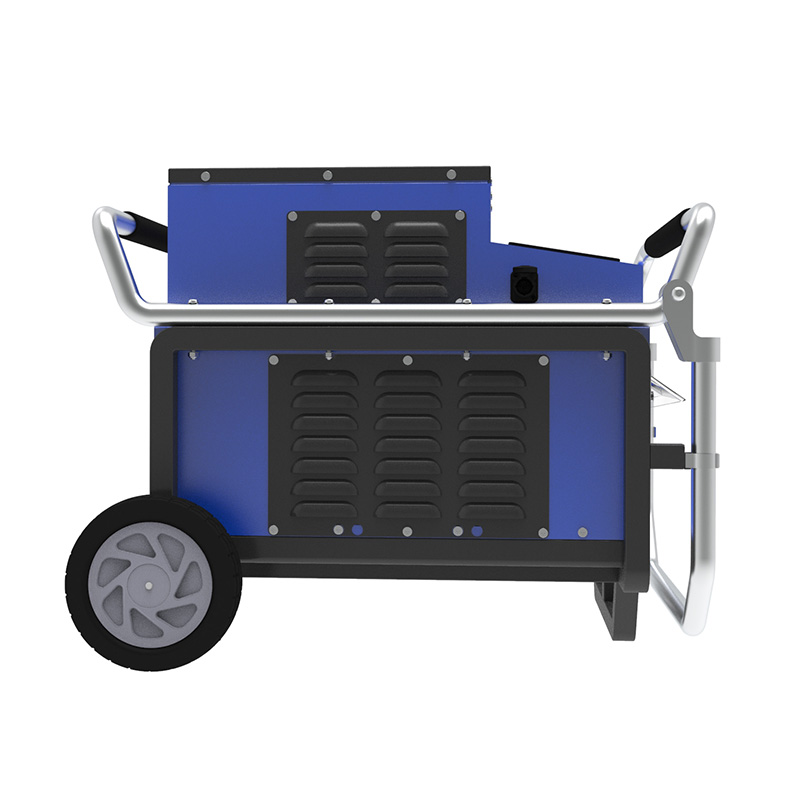

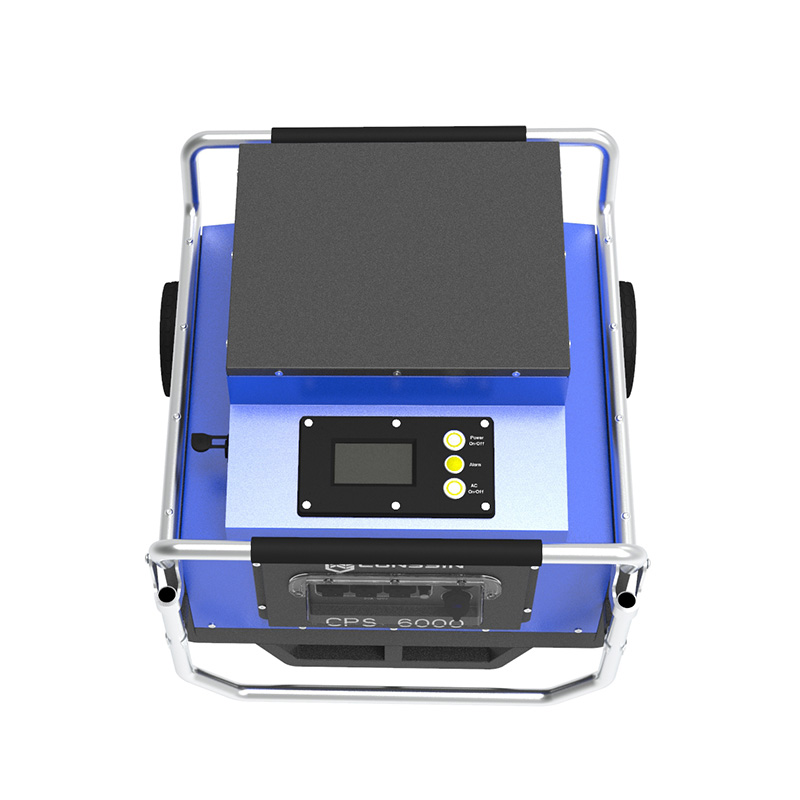

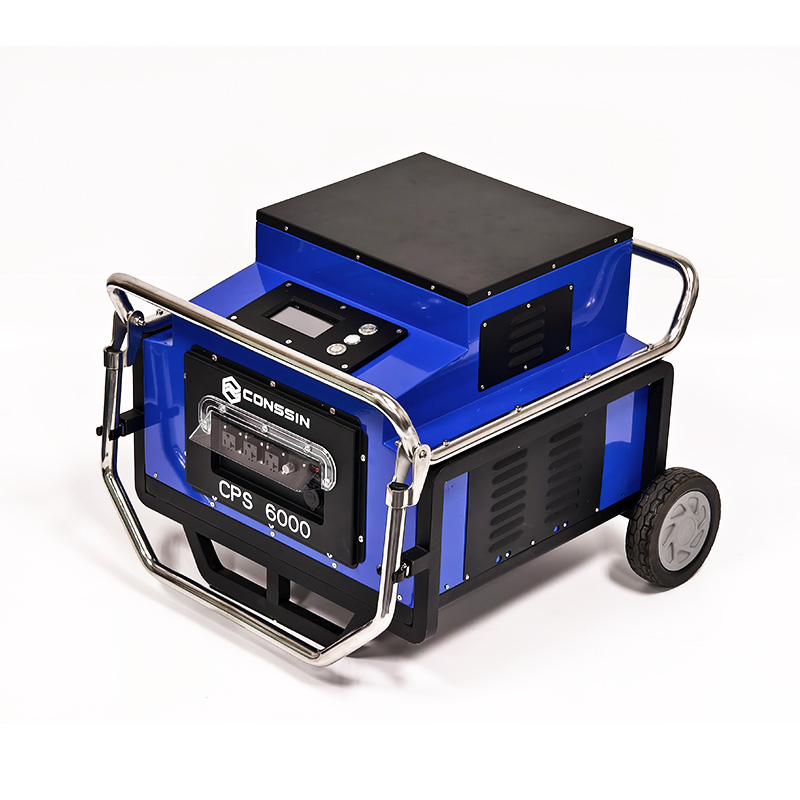

85kgThis IP54-rated industrial heavyduty power supply (CPS-6000) focuses on high-capacity endurance and strong environmental adaptability.
It utilizes lithium iron phosphate (LFP) cells, boasting a long cycle life, and is paired with an IP54 dust and water-resistant casing, making it suitable for complex scenarios such as outdoor engineering, industrial equipment inspections, and backup power supply for large-scale events.
The 6400Wh large capacity supports long-duration operation of high-power equipment (such as power tools and small water pumps), providing a stable solution for industrial-grade mobile power supply.
Rated capacity: 6400Wh
Power: 6000W
Overload power: 7200W
AC outlet: 100V grounded 2P x 2
DC outlet: USB-A x 1, USB-C x 1
AC charging time: 3.5 hours
Solar charging: up to 800W
Expansion 1: Use parallel cord to enable parallel operation with two units.
Expansion 2: Using the expansion connector, parallel operation with 3 to 5 units is possible.
Cycle life: Capacity ≥80% after 4000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Fire extinguishing device: Aerosol type (oxygen cutoff)
UPS (Uninterruptible Power Supply): Operation switching time ≤10ms (milliseconds)
Application scenarios
Spec sheet
| Model | CPS-6000 |
| Rated capacity | 6400 Wh |
| Rated power | 6000 W |
| Charging time | ≈3.5 hours (under the condition of 25℃ ambient temperature) |
| Weight | ≈85kg |
| Dimension | L668 x W708 x H531 mm |
| Battery type | Lithium iron phosphate ion(LFP) |
| IP rating | IP54 |
| IK rating | IK09 |
| Rated voltage | 100VAC ±4% |
| Rated current | 60A |
| Frequency | 50Hz/60Hz |
| Outlet type | 125V・grounded 2P × 3 port |
